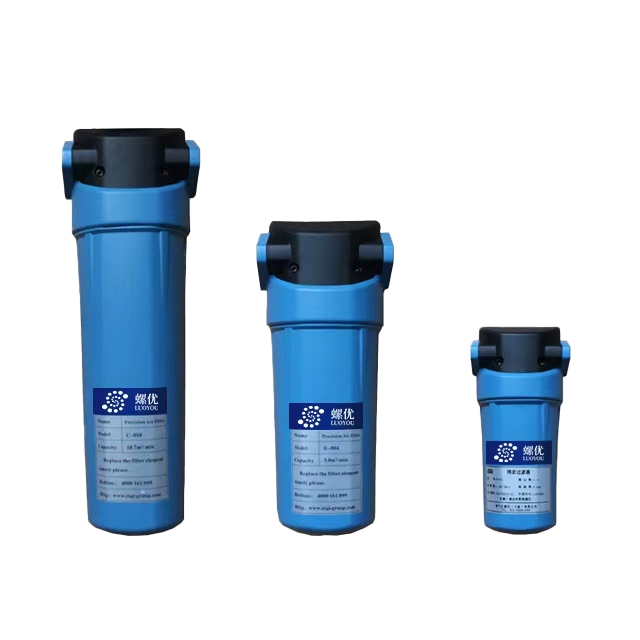

Ultra-Fine Precision Compressed Air Filter for Oil Mist Removal

Technical Specifications & Performance Data

Particle Filtration Capability

The precision compressed air filter is engineered to intercept solid particulates, including dust, rust, and metal shavings. This functional capability is essential for protecting downstream pneumatic components, sensors, and sensitive instrumentation from mechanical wear and potential blockages.

Oil Mist and Moisture Separation

Designed for stringent air quality requirements, the filter effectively isolates oil mist and trace moisture from the compressed air stream. By controlling these contaminants, it prevents the degradation of equipment seals and minimizes corrosion risks within the pneumatic system.

Odor and VOC Elimination

For applications demanding highly purified air, the activated carbon series (Series H) is specifically configured to adsorb volatile organic compounds (VOCs) and eliminate residual odors, ensuring the air supply meets strict environmental criteria.

Pressure Drop Management

Maintaining consistent system pressure is critical for operational efficiency. The filter structure is optimized to deliver high filtration precision while minimizing pressure loss, ensuring stable airflow for downstream processes and supporting overall energy management.

Operating Conditions & Maintenance Standard

• Working Pressure: Standard operating pressure is 0.7MPa, with structural adaptability for a maximum pressure of 1.8MPa depending on specific system configurations.

• Inlet Temperature: Designed to handle inlet temperatures of ≥60℃.

• Maintenance Cycle: The standard service life for the filter elements is approximately 2,000 hours across all series (Series C, T, A, and H). To maintain optimal system efficiency and prevent downstream contamination, filter element replacement is strictly required when the pressure difference reaches ≥0.07MPa.

Characteristic Advantages

High Filtration Precision (3μm to 0.01μm)

The Ultra-Fine Precision Compressed Air Filter is engineered to deliver exceptional air purity for critical industrial applications. By offering a comprehensive filtration precision range from 3μm down to 0.01μm, this filter effectively removes microscopic particulates, oil aerosols, and moisture droplets. For facility managers and procurement teams, this guarantees reliable protection for sensitive downstream pneumatic equipment. Achieving strict air purity standards helps prevent product contamination, significantly reducing defect rates and ensuring compliance in demanding manufacturing environments.

Low Pressure Loss for Energy Efficiency

A common challenge in industrial air treatment is the trade-off between high filtration efficiency and pressure drop. This precision air filter resolves that issue by perfectly balancing optimal oil mist removal with exceptionally low pressure loss. The optimized internal flow path ensures that compressed air passes through smoothly without creating unnecessary resistance. For plant operations, this translates directly into measurable energy savings. By minimizing the workload on air compressors, facilities can lower their daily electricity consumption and optimize overall operational costs without compromising air quality.

Long Filter Element Lifespan

Managing consumable costs is a priority for any industrial facility. The filter elements within this series are constructed for extended durability and high dirt-holding capacity. Even in environments with continuous heavy-duty operation, the robust structural design resists premature clogging and media degradation. This long service life directly reduces the frequency of replacement cycles, lowering annual maintenance budgets. Furthermore, fewer filter changes mean minimized scheduled downtime, ensuring that production lines maintain maximum productivity and operational stability.

Versatile Compatibility and Easy Integration

When sourcing air treatment components, seamless integration into existing infrastructure is crucial. This compressed air filter boasts versatile compatibility across various pneumatic system setups. Whether installed upstream as a pre-filter to protect refrigerated air dryers or positioned downstream as a final polishing filter for desiccant dryers, it adapts effortlessly to different treatment configurations. This flexibility simplifies the selection process for procurement engineers, reducing compatibility risks and ensuring that the unit can be easily incorporated into both new installations and system upgrades.

Easy Maintenance and Quick Replacement

Operational efficiency relies heavily on minimizing maintenance complexity. Designed with user convenience in mind, this precision filter allows for straightforward servicing. Filter housings and elements can be accessed and replaced quickly without the need for specialized tools or extensive downtime, significantly cutting down on labor costs. Additionally, compatible designs allow for the integration of differential pressure indicators that provide clear visual alerts when a replacement is due. This proactive monitoring prevents the risk of operating with saturated filters, safeguarding system integrity.

Environmental Benefits and Equipment Protection

Beyond immediate performance metrics, effective oil mist removal contributes to broader facility sustainability and equipment longevity. By efficiently capturing and draining oil aerosols before they can travel through the piping network, this filter prevents the degradation of pneumatic valves, cylinders, and sensitive instruments. This protective capability extends the operational lifespan of expensive downstream machinery, effectively delaying capital expenditures for replacements. Concurrently, preventing oil contamination from exhausting into the ambient environment supports cleaner, safer, and more compliant industrial workspaces.

Reliable compressed air is a critical utility across demanding industrial sectors. The Ultra-Fine Precision Compressed Air Filter is specifically engineered to address industry-specific pain points—such as sub-micron particulate contamination, residual oil mist, and aerosol carryover—ensuring that sensitive equipment operates smoothly and end-products meet rigorous quality standards.

Pneumatic Instruments and Control Systems

Pneumatic instruments, such as pressure gauges, control valves, and flow meters, require exceptionally clean air to maintain calibration accuracy. In industrial settings, micro-particles and residual oil mist can easily clog tiny orifices within these devices, leading to erratic readings, control failures, and unplanned maintenance downtime. The Ultra-Fine Precision Compressed Air Filter intercepts these contaminants before they reach sensitive pneumatic components. By providing a consistent supply of clean air, it prevents premature wear on delicate mechanisms, reduces the frequency of instrument recalibration, and ensures the long-term stability of automated production lines.

Electronics and Semiconductor Manufacturing

In electronics and semiconductor manufacturing, sub-micron particles and trace oil vapor are critical threats in cleanroom environments. Contaminated compressed air used in pneumatic conveying, wafer handling, or PCB blow-off processes can lead to microscopic short circuits, poor solder joint adhesion, and significant yield losses. This precision filter delivers ultra-pure air that supports stringent cleanroom operational requirements. It effectively prevents microscopic oil films from depositing on sensitive electronic components during PCB drilling, soldering, and microchip assembly, directly helping manufacturers minimize costly defect rates and protect production integrity.

Medical Equipment and Pharmaceutical Production

Medical equipment operation and pharmaceutical production demand a highly controlled, contaminant-free manufacturing environment. When compressed air is used for pharmaceutical blending, tablet coating, or driving medical devices, any presence of ambient particles or oil aerosols can compromise product safety and violate strict industry compliance standards. Designed to support critical healthcare applications, the filter effectively removes aerosolized oil and fine particulate matter. This creates a reliable protective barrier that ensures the safe operation of sensitive medical tools and helps pharmaceutical facilities maintain continuous regulatory compliance without risking batch contamination.

Food and Beverage Packaging

Food and beverage packaging facilities rely heavily on compressed air for blow molding PET bottles, cleaning packaging lines, and operating automated sorting equipment. Oil mist or particulate carryover in the air stream can introduce off-tastes, odors, and hygiene risks, potentially leading to product recalls. The Precision Air Filter acts as a crucial safeguard for food safety. By stripping out undesirable oil aerosols and solid impurities, it ensures that the air interacting with food packaging remains clean and odor-free. This supports hygienic bottling, canning, and vacuum sealing processes, helping plants meet strict food safety regulations and preserve product freshness.

Automotive and Precision Machinery

Automotive manufacturing and precision machinery heavily depend on pneumatic tools, robotic paint sprayers, and CNC machining centers. These heavy-duty tools are highly susceptible to wear and corrosion when exposed to dirty or oily compressed air, which can cause premature tool failure, jammed air motors, and inconsistent paint finishes. Installing this precision air filter protects expensive pneumatic machinery from abrasive particles that score cylinder walls. For automotive paint shops, it helps ensure a flawless surface finish by eliminating oil aerosols, ultimately extending equipment service life, reducing replacement costs, and keeping production schedules running efficiently.

How to choose the right filtration precision for my application?

The ideal filtration precision depends on your end-use requirements and industry standards. For general pneumatic tools and industrial machinery, a 3μm (Series C) or 1μm (Series T) filter provides reliable baseline protection. For high-purity environments such as electronics manufacturing, pharmaceuticals, or medical applications, we strongly recommend the 0.01μm (Series A) filter for ultra-fine micro oil mist removal. If your process requires completely oil-free and odor-free air, the Series H activated carbon filter is the optimal choice for odor elimination.

Where should the Precision Air Filter be installed in a compressed air system?

Proper installation location is crucial for optimal performance. Typically, these filters are installed downstream of air compressors and air receivers. They can be placed before air dryers for essential pre-filtration (to protect the dryer) or downstream of the dryers for final precision filtration. To ensure maximum protection against pipeline contaminants, we advise installing the final filter as close to the point-of-use or downstream sensitive equipment as possible.

Does the filter affect air flow or pressure?

The filter is engineered to maintain high filtration efficiency while minimizing pressure drop, ensuring your system operates efficiently. By utilizing advanced "gradient interception" technology and optimized flow path design, the filter ensures that air flow remains consistent. The initial pressure loss is kept well within acceptable industry limits, which helps in reducing the overall energy consumption of your air compressor system without compromising air purity.

How often should filter elements be replaced?

The lifespan of the filter element depends on your system's operating conditions and inlet air contamination levels. Under standard industrial usage, the filter elements have an estimated service life of approximately 2,000 working hours. For the most accurate maintenance schedule, we recommend replacing the elements when the pressure drop reaches the manufacturer’s recommended threshold, which can be easily monitored using an installed pressure difference gauge. Timely replacement prevents excessive pressure drop and maintains stable air quality.

Can the filter remove both oil mist and moisture?

Yes, the Precision Air Filter utilizes highly efficient coalescence separation technology to effectively remove oil mist aerosols, solid particulates, and trace liquid moisture from the compressed air stream. However, while it handles liquid aerosols exceptionally well, it is not designed to remove water vapor. For applications demanding strictly dry air and complete moisture removal (low dew point), we strongly advise pairing the filter with a freezing dryer (refrigerated dryer) or an adsorption dryer (desiccant dryer) to achieve optimal system results.
