What Pressure Drop Is Acceptable in a Compressed Air System?

Pressure drop acts as a hidden tax on facility energy bills. It drains power and reduces equipment lifespan silently. Every pneumatic system faces this inevitable friction. Fluid dynamics dictate air loses momentum traveling through pipes and fittings. This natural resistance means you always lose some power between the mechanical room and the factory floor. However, crossing from normal friction to severe inefficiency creates a massive financial burden. Many operators mistakenly treat these symptoms by pushing their machinery harder. They simply increase the compressor operating pressure. This costly band-aid actually exacerbates component wear and drives up energy waste. We will define industry-standard acceptable thresholds so you know your exact baseline. You will learn how to calculate the real financial impact of these pipeline losses. Finally, we provide a solid framework for evaluating upgrades or targeted maintenance interventions effectively.

Key Takeaways

• Industry Standard: An acceptable compressed air pressure drop is typically less than 10% of the compressor's discharge pressure (ideally 5% or less).
• The Cost Metric: Every 2 PSI (14 kPa) of excess pressure drop costs approximately 1% more in compressor energy consumption.
• Primary Culprits: Undersized piping, complex layouts (too many elbows/tees), and poorly maintained filtration components account for the majority of air system pressure loss.
• Best Practice Solution: Do not increase supply pressure to compensate for distribution flaws; instead, audit the system, upgrade to smooth-bore piping, and right-size air treatment components.

Defining Acceptable Limits for Compressed Air Pressure Drop

Experts agree an optimized industrial air system should lose no more than 10% of its total discharge pressure. Organizations like the Compressed Air and Gas Institute (CAGI) establish this as a core operational benchmark. Ideally, modern facilities should aim for a variance of 5% or less. This strict parameter ensures pneumatic tools receive adequate force without overworking the central machinery.

We must evaluate this metric across two primary infrastructure zones. First, the supply side sits inside your equipment room. This confined area houses separators, inline filters, and air dryers. You should keep losses across these purification components under 3 to 5 PSI total. Second, the demand side involves distribution headers and vertical drops. These overhead pipes carry air directly to point-of-use equipment. They should add minimal additional friction. If your facility exceeds these thresholds, it indicates a severe compressed air pressure drop issue.

Understanding component baselines helps operators identify failing parts early. New components inherently cause slight resistance. A brand-new coalescing filter naturally creates a 1 to 2 PSI drop. However, anything registering over 5 PSI demands immediate replacement. Delaying this maintenance forces the main motor to push harder continuously.

The following chart illustrates standard acceptable ranges for new components alongside their critical replacement thresholds.

The Business Impact: Calculating the Cost of Air System Pressure Loss

The relationship between pressure generation and energy consumption operates non-linearly. You must view compressed air efficiency strictly in financial terms. Generating an extra 2 PSI requires approximately 1% more electricity. This specific power ratio scales aggressively in large manufacturing plants. If your pipeline loses 15 PSI due to poor design, you waste roughly 7.5% of your total electrical input. For a facility running multiple 100-horsepower units constantly, this equates to thousands of dollars wasted annually.

Pushing machines harder creates a dangerous scenario known as the artificial demand trap. Raising the main supply setting to overcome pipeline friction forces unregulated equipment to consume more volume. Imagine an open blow-off nozzle rated for 80 PSI. If you raise system pressure to 100 PSI to fix a drop elsewhere, that nozzle consumes significantly more air unnecessarily. Furthermore, higher line pressure forces more volume through existing microscopic leaks. This compounds the financial drain exponentially.

Combatting distribution drops by over-pressurizing leads to severe lifecycle risks. Compressors running near maximum load limits suffer premature component failure. They experience higher internal operating temperatures. These elevated temperatures break down synthetic lubricants much faster. Consequently, your maintenance staff must perform oil changes and bearing replacements more frequently. You pay significantly more for electricity while simultaneously destroying capital equipment prematurely.

Core Causes of Pressure Drop in an Industrial Air System

We can group the primary friction culprits into two distinct categories. Capital design flaws dictate the baseline friction. Operational neglect worsens these conditions over time.

Infrastructure and design flaws stem from initial installation choices. These structural issues often restrict volumetric flow dramatically:

• Undersized piping: Installing pipes too narrow for peak CFM demand forces air velocity to skyrocket. High velocity multiplies inner wall friction intensely.
• Suboptimal materials: Legacy systems often rely on black iron or galvanized steel. These metals corrode internally due to moisture. They scale up and create immense surface roughness.
• Complex routing: Excessive elbows, tees, and dead-ends disrupt laminar flow. Every sharp 90-degree turn saps momentum and creates turbulent eddies.

Maintenance and component degradation represent operational failures. Even perfectly designed pipelines degrade if personnel ignore preventive schedules. Common operational causes include:

• Clogged inline filters: Saturated filter elements act as literal roadblocks in the airstream.
• Malfunctioning air dryers: Undersized dryers restrict flow severely. Internal freezing or fouled heat exchangers make them a major source of air system pressure loss.
• Failing regulators: Aging pressure regulators and lubricators bottleneck the flow right before it enters the pneumatic tool.

We must establish a transparent baseline assumption here. Achieving zero pressure loss remains physically impossible. Basic fluid dynamics dictate friction will always occur when gas moves against solid boundaries. Our objective involves strict mitigation rather than absolute elimination.

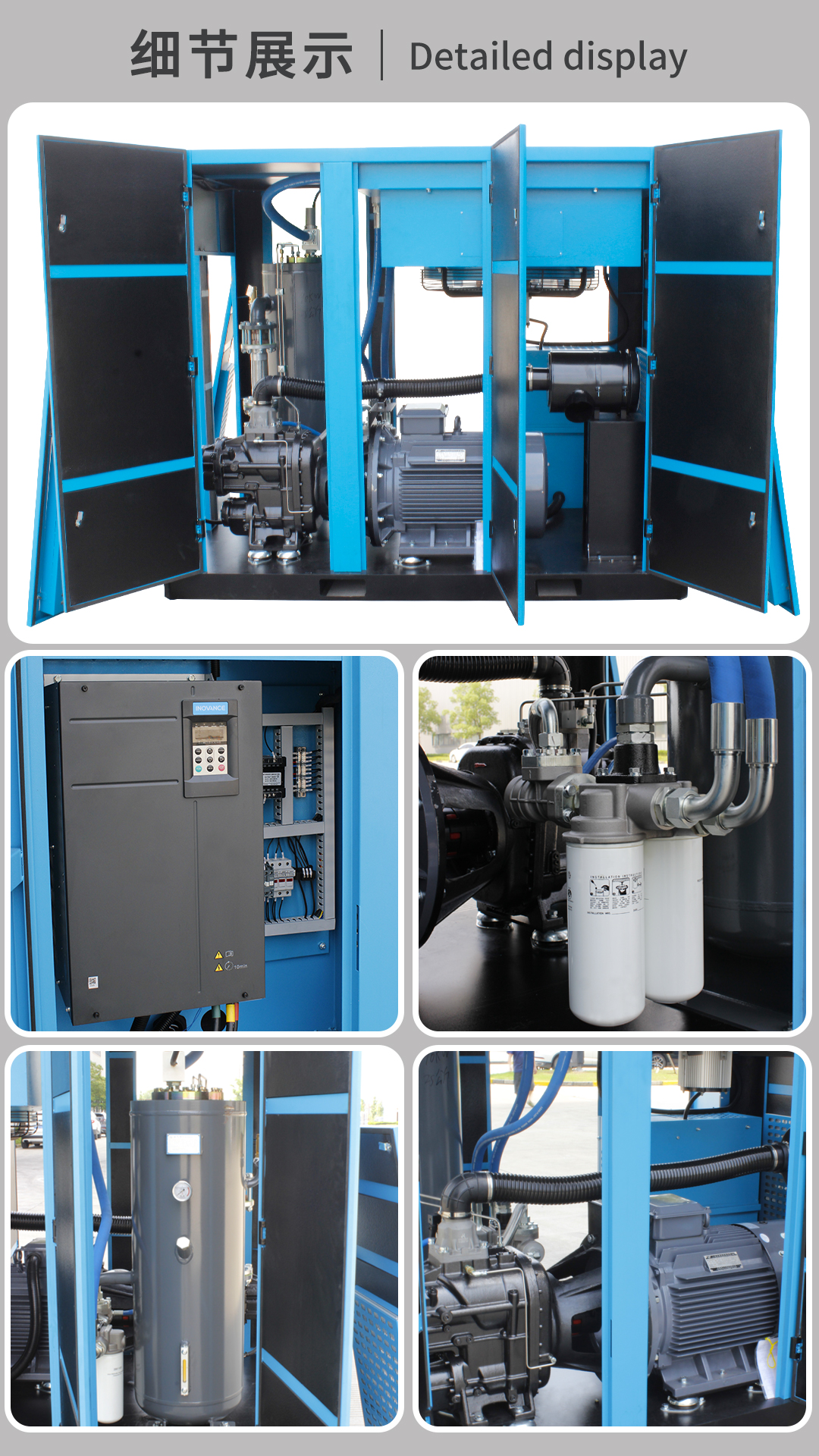

How to Accurately Measure and Audit Your System

You cannot fix inefficiencies you do not measure accurately. The standard diagnostic methodology requires taking simultaneous differential pressure readings. You must compare the discharge gauge in the mechanical room directly against a gauge at the furthest tool. This comparison remains the only accurate way to diagnose the true performance gap.

To execute a proper manual audit, follow these numbered steps:

1. Calibrate two high-quality analog or digital pressure gauges.
2. Install the first gauge directly after the final supply-side component (usually the receiver tank).
3. Install the second gauge at the pneumatic tool experiencing the most severe performance issues.
4. Record simultaneous readings strictly during peak production hours.

Many plant managers fall into common evaluation pitfalls. Do not take measurements during low-load periods or shift changes. Friction operates as a direct function of flow velocity. It peaks only when CFM demand reaches its absolute maximum. Measuring during a lunch break provides dangerously false optimism. Also, do not rely solely on digital OEM software readouts from the main controller. Software estimates cannot replace physical downstream gauge verification.

When should you transition from internal troubleshooting to hiring a professional auditor? Internal teams handle obvious filter swaps easily. However, complex sprawling networks require third-party expertise. You should hire an auditor if symptoms persist after routine maintenance. Certified auditors perform comprehensive data logging over 7 to 14 days. This extended timeline reveals hidden demand spikes, intermittent leaks, and baseline velocity issues your internal team might miss.

Evaluating Solutions: How to Correct Excessive Pressure Drop

Facilities can choose from three distinct solution categories. These depend heavily on available capital, system age, and specific measurement data.

Solution Category 1: Routine Maintenance

This category carries extremely low risk and delivers immediate returns. It primarily involves replacing old filter elements and servicing purification equipment. A heavily soiled coalescing filter can easily steal 8 PSI from your line. Swapping the element restores flow instantly. While this offers the fastest fix, implementation realities demand strict discipline. You must adhere to preventive maintenance schedules rigidly. You cannot wait for parts to fail completely before ordering replacements.

Solution Category 2: Component Upgrades & Right-Sizing

This middle-tier intervention carries medium operational risk. You focus on upgrading undersized regulators, supply hoses, and quick-disconnect fittings. The critical evaluation dimension involves flow ratings. Ensure you rate every new component for your actual peak flow (CFM). Do not size them merely matching the average pipe diameter. A half-inch pipe fitting might handle your average flow easily but choke completely during sudden pneumatic surges.

Solution Category 3: Piping System Overhaul

This final category demands high capital expenditure but guarantees long-term scalability. Overhauling the main infrastructure fundamentally changes fluid dynamics across your plant. The most effective upgrade involves transitioning from a linear piping layout to a continuous "ring main" loop system. A loop system allows air to travel in two directions toward any high-demand tool. This bi-directional flow effectively cuts air velocity in half. Because friction correlates to the square of velocity, this drastically reduces pipeline resistance.

Furthermore, upgrading from degrading steel to smooth-bore extruded aluminum piping eliminates future corrosion. The primary adoption risks include high upfront installation costs and potential temporary facility downtime. However, aluminum piping provides superior financial returns over a 5 to 10 year span. It offers zero internal scaling, requires no threading during installation, and guarantees permanently low surface friction.

Conclusion

Maintaining acceptable performance limits requires balancing fluid physics with facility economics. Ignoring pipe friction drains power invisibly and shortens equipment life. Operating a profitable plant demands strict attention to these pneumatic details.

• Never treat distribution flaws by dialing up the main supply setting. It remains a fundamentally flawed and expensive strategy.
• Keep total system resistance strictly under 10%, aiming aggressively for 5% or better.
• Replace purification elements based on differential gauge readings rather than scheduled visual inspections alone.
• Investigate your main distribution piping materials. Transitioning to smooth aluminum prevents long-term friction accumulation and stops internal rust entirely.

Take immediate action today. Begin with a simple differential pressure test during your busiest production hours. If the gap between your mechanical room and the factory floor exceeds 10%, contact a certified specialist immediately. Schedule a baseline energy audit to reclaim your wasted electrical budget.

FAQ

Q: Does increasing pipe size reduce pressure drop?

A: Yes. Larger pipe diameters slow down air velocity significantly. Slower moving air generates far less friction against the inner pipeline walls. This drastically reduces subsequent pipeline loss and allows downstream tools to receive consistent, reliable power during peak production surges.

Q: How often should I change air filters to prevent pressure loss?

A: Most industrial manufacturers recommend replacing inline filter elements every 6 to 12 months. However, you should replace them immediately if the differential gauge indicates a drop exceeding 5 PSI. Never rely on visual appearance alone, as microscopic blockages cause severe flow restriction invisibly.

Q: What is the difference between pressure drop and pressure loss?

A: Industry professionals generally use these terms interchangeably. However, "drop" often refers to the natural, expected reduction across a specific component like a dryer or filter. Conversely, "loss" typically refers to the overall system inefficiency from the compressor room all the way to the final pneumatic tool.
