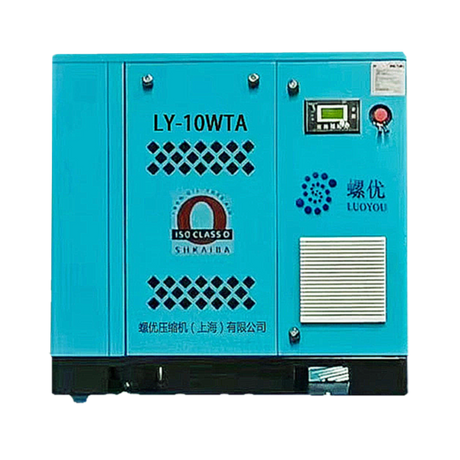

The water-lubricated screw air compressor operates on an advanced thermodynamic and mechanical principle, utilizing purified water rather than traditional lubricating oil to facilitate the entire compression cycle. This fundamental design ensures that the internal air path remains completely isolated from hydrocarbon contamination. The core mechanism relies on a precision-engineered air end where a specialized three-stage internal process—intake, compression, and exhaust—transforms ambient atmospheric air into highly pressurized, strictly oil-free output.
The technical cycle initiates with the intake phase, where ambient air is drawn into the compressor system. Before this air is permitted to enter the internal compression chamber, it must pass through an industrial-grade, high-efficiency air filtration mechanism. This intake filter is meticulously configured to capture airborne particulates, environmental dust, and micro-debris. By intercepting these physical contaminants at the system's boundary, the filtration unit serves a critical protective function. It prevents abrasive particles from entering the compression block, thereby safeguarding the precision-machined surfaces of the internal rotors and establishing the foundational purity of the incoming air stream.
Once filtered, the clean air flows directly into the main compression section. Within this chamber, a pair of highly precise, interlocking helical rotors rotate in opposite directions. As the rotors turn, the physical geometry between the rotor lobes and the casing progressively decreases, forcing the trapped air into a continuously shrinking volume and consequently elevating its internal pressure.
During this exact mechanical action, purified water is continuously injected directly into the compression chamber. In this system, water fulfills three indispensable technical roles. First, it acts as a dynamic fluid seal, closing the microscopic mechanical clearances between the rotors themselves and between the rotors and the housing, which significantly minimizes internal air leakage and maximizes volumetric efficiency. Second, the water serves as a highly effective, frictionless lubricant for the rotating components, completely replacing the need for synthetic or mineral oils. Third, due to water's high specific heat capacity, it acts as a primary cooling agent. It instantly absorbs the intense thermal energy generated by the physical compression of air. This near-isothermal compression process keeps internal operating temperatures remarkably low, preventing mechanical overheating and protecting the structural integrity of the air end.
In the final stage, the pressurized mixture of compressed air and injected water is discharged from the compression chamber through the exhaust port. Because absolutely no oil is introduced at any point in the mechanical system, the resulting compressed air is inherently 100% oil-free. Following the discharge, the air-water mixture enters a specialized internal separation vessel. Here, the liquid water is efficiently extracted from the compressed air stream. The purified, pressurized air is then directed downstream for immediate utilization in sensitive pneumatic processes.
Simultaneously, the separated water enters a closed-loop internal circulation system. It passes through a built-in water treatment and filtration circuit to remove any dissolved impurities or residual thermal heat. Once cooled and purified, the water is recirculated back into the compression chamber for the next cycle. This continuous, self-sustaining water management system ensures consistent lubrication and cooling while maintaining a strictly zero-oil operational environment.
