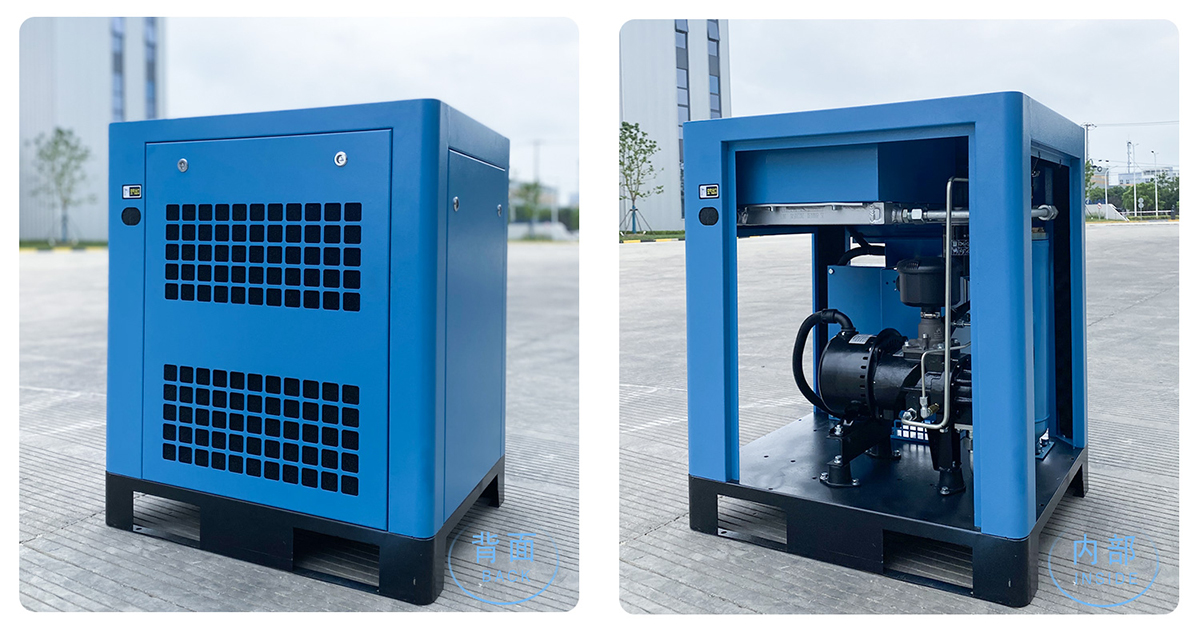

The internal structure and working principle of the Low-Maintenance VSD Screw Air Compressor are engineered to deliver maximum volumetric efficiency and long-term operational stability. By integrating an advanced mechanical compression system with precise electrical control, this compressor ensures a reliable and continuous supply of compressed air while minimizing energy consumption and mechanical wear. Understanding the core mechanics behind this equipment helps facility managers and purchasing professionals evaluate its long-term value for industrial air systems.
At the mechanical core of the compressor lies the highly efficient two-stage compression system. Unlike conventional single-stage models that force the air to reach the target pressure in one step, this design divides the compression process into two successive stages. Each stage utilizes its own independent compression unit (air end), which fundamentally alters the internal dynamics of the machine.
During operation, ambient air enters the first stage, where it is compressed to an intermediate pressure. Before entering the second stage, the air is typically cooled, which significantly increases its density. The second stage then compresses this denser air to the final required pressure. This sequential process allows for a substantially lower compression ratio within each individual stage. A lower compression ratio directly reduces the internal pressure differences across the rotors, thereby minimizing internal air leakage backward through the rotor clearances.
As a result of this internal leakage reduction and optimized thermal dynamics, the volumetric efficiency of the system is greatly enhanced. Under identical power conditions, this two-stage working principle can improve the actual air delivery volume by more than 15% compared to single-stage compression. For industrial facilities, this translates to more compressed air output for the same electrical input, reducing the overall cost of ownership over the equipment's lifespan.
The driving force behind the mechanical air end is a high-efficiency permanent magnet synchronous motor. The working principle of this motor relies on permanent magnets embedded in the rotor, which create a constant magnetic field without the need for an external electrical current. This eliminates rotor copper losses, resulting in a motor that operates with exceptional electrical efficiency across a wide range of speeds.
The structural advantage of the permanent magnet motor is fully realized when paired with Variable Speed Drive (VSD) technology. In a traditional fixed-speed compressor, the motor runs at full capacity regardless of the actual air demand, leading to frequent load/unload cycles and significant energy waste. In contrast, the VSD system continuously monitors the pressure in the compressed air network. When the demand for air fluctuates, the variable frequency drive precisely adjusts the electrical frequency supplied to the motor, instantly altering its rotational speed.
This dynamic working principle ensures that the compressor only produces the exact amount of air required by the facility at any given moment. By matching the air output directly to the actual air demand, the system eliminates wasteful unloading periods and minimizes starting current peaks. The broad speed regulation range of the permanent magnet motor allows it to maintain high efficiency even at partial loads, achieving substantial energy savings and reducing the mechanical stress on the entire drive train.
The true technical value of this compressor lies in the seamless synergy between the two-stage compression structure and the permanent magnet VSD motor. The VSD motor provides the exact rotational speed needed to maintain system pressure, while the two-stage air end ensures that every rotation is converted into compressed air with maximum mechanical efficiency. This combined working principle not only lowers daily energy consumption but also ensures a low-maintenance operation, as the reduced compression ratios and smooth speed transitions result in lower operating temperatures and less wear on critical internal components.
