| Quantity: | |
|---|---|
LY-50JTPM-16
Luoyou

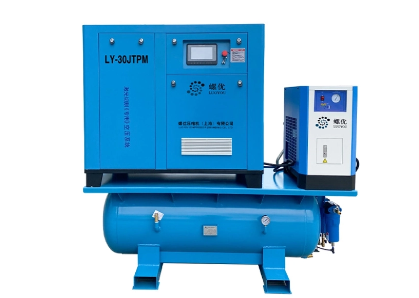

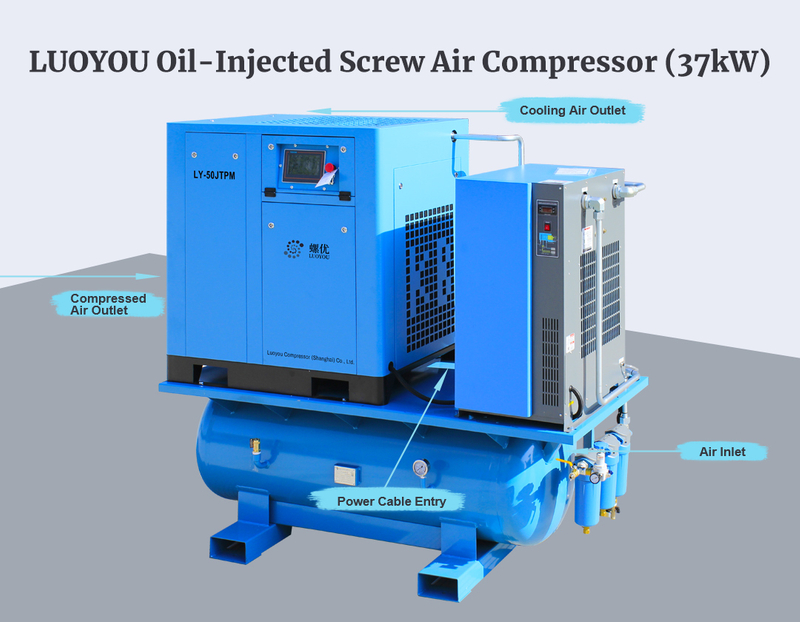

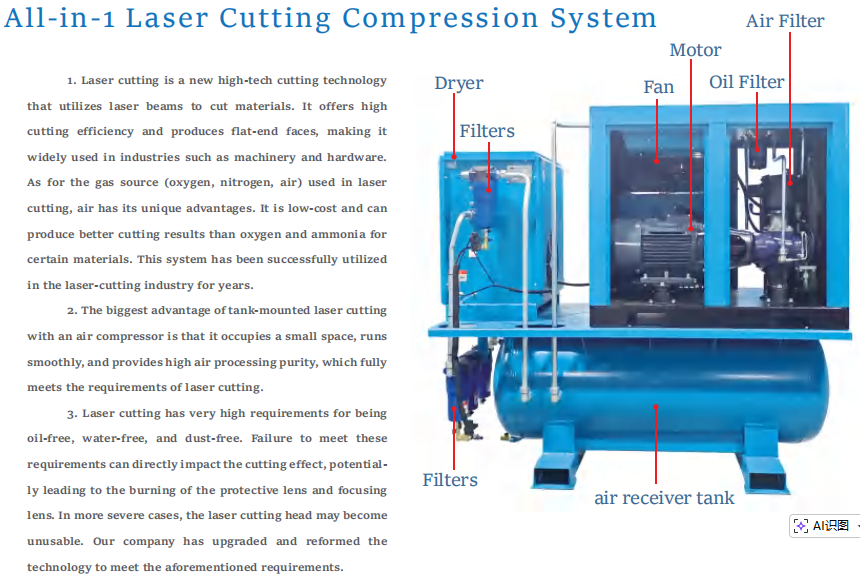

37KW 50HP 16Bar，this screw air compressor is specifically designed for 20KW - 30KW laser machine cutting machines. It is equipped with a storage tank, a dry air machine, and 4 precision filters. After compression, the air obtained is of higher purity and has better dust removal and water removal effects. It meets the requirements of 20-30KW laser cutting machines in various industries. The whole machine is guaranteed for one year. Meanwhile, our company provides all the accessories related to this air compressor. If you want to know more details and installation examples, please contact our customer service staff. We will be more than happy to serve you.
Model | Power (KW) | Pressure（Bar) | Output m³/min | Dia. | Noise（dB） | Outline（MM） | Wt (KG) | ||
Compressors for Laser Cutting - Variable Frequency | |||||||||
LY-10JPM | 7.5 | 16 | 0.6 | G1/2 | 60±2 | 800*720*950 | 220 | ||
LY-15JPM | 11 | 16 | 0.9 | G3/4 | 62±2 | 950*800*1070 | 380 | ||
LY-20JPM | 15 | 16 | 1.5 | G3/4 | 62±2 | 950*800*1070 | 410 | ||
LY-30JPM | 22 | 16 | 2.2 | G11/4 | 65±2 | 1200*800*1240 | 650 | ||
LY-40JPM | 30 | 16 | 3 | G11/4 | 66±2 | 1200*800*1240 | 720 | ||
LY-50JPM | 37 | 16 | 3.7 | G11/2 | 68±2 | 1300*860*1135 | 840 | ||
4-in-1 Compressors for Laser Cutting - Fixed Speed | |||||||||
LY-10JTA | 7.5 | 16 | 0.6 | G1/2 | 65±2 | 1400*750*1600 | 520 | ||
18 | 0.59 | ||||||||
LY-15JTA | 11 | 16 | 0.9 | G3/4 | 65±2 | 1700*880*1850 | 840 | ||
18 | 0.89 | 1550*880*1850 | |||||||
LY-20JTA | 15 | 16 | 1.5 | G3/4 | 65±2 | 1700*880*1850 | 880 | ||
18 | 1.48 | 1550*880*1850 | |||||||
LY-30JTA | 22 | 16 | 2.2 | G11/4 | 66±2 | 2250*980*2050 | 1300 | ||
18 | 2.17 | 2100*980*2050 | |||||||
LY-40JTA | 30 | 16 | 3 | G11/4 | 66±2 | 2250*980*2050 | 1300 | ||
4-in-1 Compressors for Laser Cutting - Variable Frequency | |||||||||
LY-10JTPM | 7.5 | 16 | 0.6 | G1/2 | 65±2 | 1400*750*1600 | 520 | ||
18 | 0.59 | ||||||||
LY-15JTPM | 11 | 16 | 0.9 | G3/4 | 65±2 | 1700*880*1850 | 840 | ||
18 | 0.89 | 1550*880*1850 | |||||||
LY-20JTPM | 15 | 16 | 1.5 | G3/4 | 65±2 | 1700*880*1850 | 880 | ||
18 | 1.48 | 1550*880*1850 | |||||||
LY-30JTPM | 22 | 16 | 2.2 | G11/4 | 66±2 | 2250*980*2050 | 1300 | ||
18 | 2.17 | 2100*980*2050 | |||||||
LY-40JTMP | 30 | 16 | 3 | G11/4 | 66±2 | 2250*980*2050 | 1300 | ||
