Microthermal Regeneration Adsorption Dryer

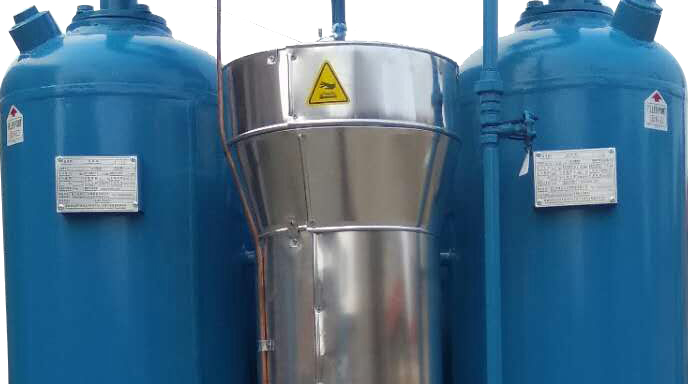

External high-efficiency heater:Highly dense, compact structure using imported alloy heating element, 316 stainless steel seamless pipe body manufacturing, good mechanical properties, good performance under high-pressure gas impact.

 High pressure resistant adsorption cartridge: High efficiency, durable, design pressure 1.0MPa, easy maintenance design, tower surface paint and internal anti-corrosion coating.

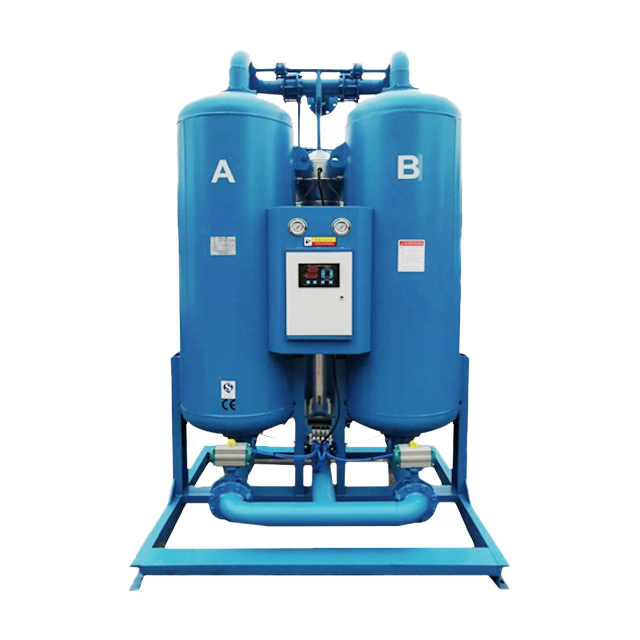

Intelligent control interface:The microcomputer microcontroller control method is implanted with mature control programs to automatically control the operation of the unit, and a variety of modes and functions are selected.

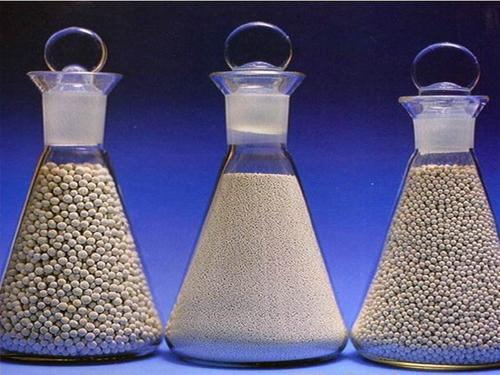

GNH-280 zeolite:It adopts a special molecular sieve for GNH-280 type suction dryer, which has high efficiency adsorption performance and high strength wear resistance, and the adsorption heat reaches 4200 dry coke. Long service life, reducing the operating costs of actual use.

1. The working cycle is long, and the service life of the desiccant is more than three times longer than that of ordinary suction dryers, saving maintenance costs.

2. The main key components are made of well-known brands at home and abroad to ensure the continuous and reliable operation of the device.

3. Electric heating elements designed with low power density to improve the performance of electric heaters.

4. Good drying effect, low dew point, high quality of finished gas, and low regeneration gas consumption .

5. The electric heater adopts temperature control protection to avoid the heating element burning;

6. The product has a low gas consumption rate of about 6%, which has energy-saving characteristics;

7. Long-cycle switching mode, good comprehensive performance of the whole machine.

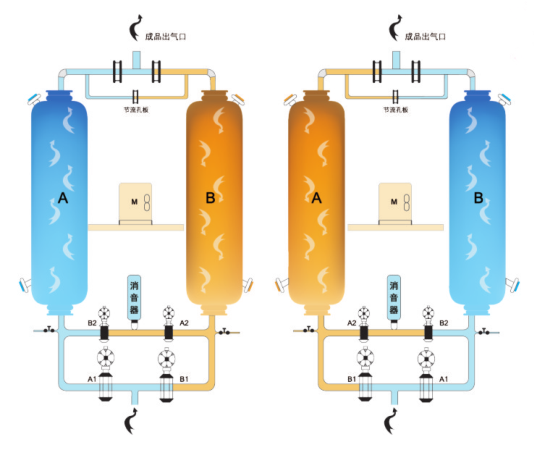

Microthermal regenerative compressed air dryer is an energy-saving product designed and developed by our company to reach the advanced level in China. This series of products combines the advantages of thermal regeneration and non-thermal regeneration, and adopts the form of micro-heating of the regenerated gas, so as to reduce the consumption of regenerated gas and achieve the purpose of energy saving. It avoids the shortcomings of short switching time and large regenerative air loss of heatless regeneration dryer, and also avoids the disadvantages of large electrical energy loss of thermal regenerative air dryer. The dryer has reasonable switching time and low consumption of regenerated gas, and is the most economical energy-saving adsorption dryer in the purification industry, which is widely used in metal, electric power, electronics, food, chemical, petroleum, medicine, textile, tobacco, instrumentation, automatic control and other industries.
