Smart Energy Management: VSD technology matches airflow to demand in real time, saving 12–16 months in energy costs compared to traditional compressors and providing a rapid return on investment.
Dust-Proof Design: IP65 motor and centrifugal air intake with a pre-filter and main filter prevent metal dust ingress, extending component life and reducing maintenance requirements in metalworking environments.
Precision Filtration: 5-stage oil/water separation ensures ≤0.01μm particle removal and ≤0.001 ppm oil content in the compressed air, protecting laser optics and nozzles from contamination and ensuring clean cuts.
Long Service Life: Low-wear bearings and corrosion-resistant coatings on internal components extend maintenance intervals to 10,000 hours, reducing downtime and operational disruptions.
User-Friendly Interface: Color touchscreen display for easy parameter adjustment and diagnostics, featuring intuitive navigation and troubleshooting guides to minimize operator training time.
Name1
Name2
Name3
Smart Energy Management: VSD technology matches airflow to demand in real time, saving 12–16 months in energy costs compared to traditional compressors and providing a rapid return on investment.
Dust-Proof Design: IP65 motor and centrifugal air intake with a pre-filter and main filter prevent metal dust ingress, extending component life and reducing maintenance requirements in metalworking environments.
Precision Filtration: 5-stage oil/water separation ensures ≤0.01μm particle removal and ≤0.001 ppm oil content in the compressed air, protecting laser optics and nozzles from contamination and ensuring clean cuts.
Long Service Life: Low-wear bearings and corrosion-resistant coatings on internal components extend maintenance intervals to 10,000 hours, reducing downtime and operational disruptions.
User-Friendly Interface: Color touchscreen display for easy parameter adjustment and diagnostics, featuring intuitive navigation and troubleshooting guides to minimize operator training time.
Name1
Name2
Name3

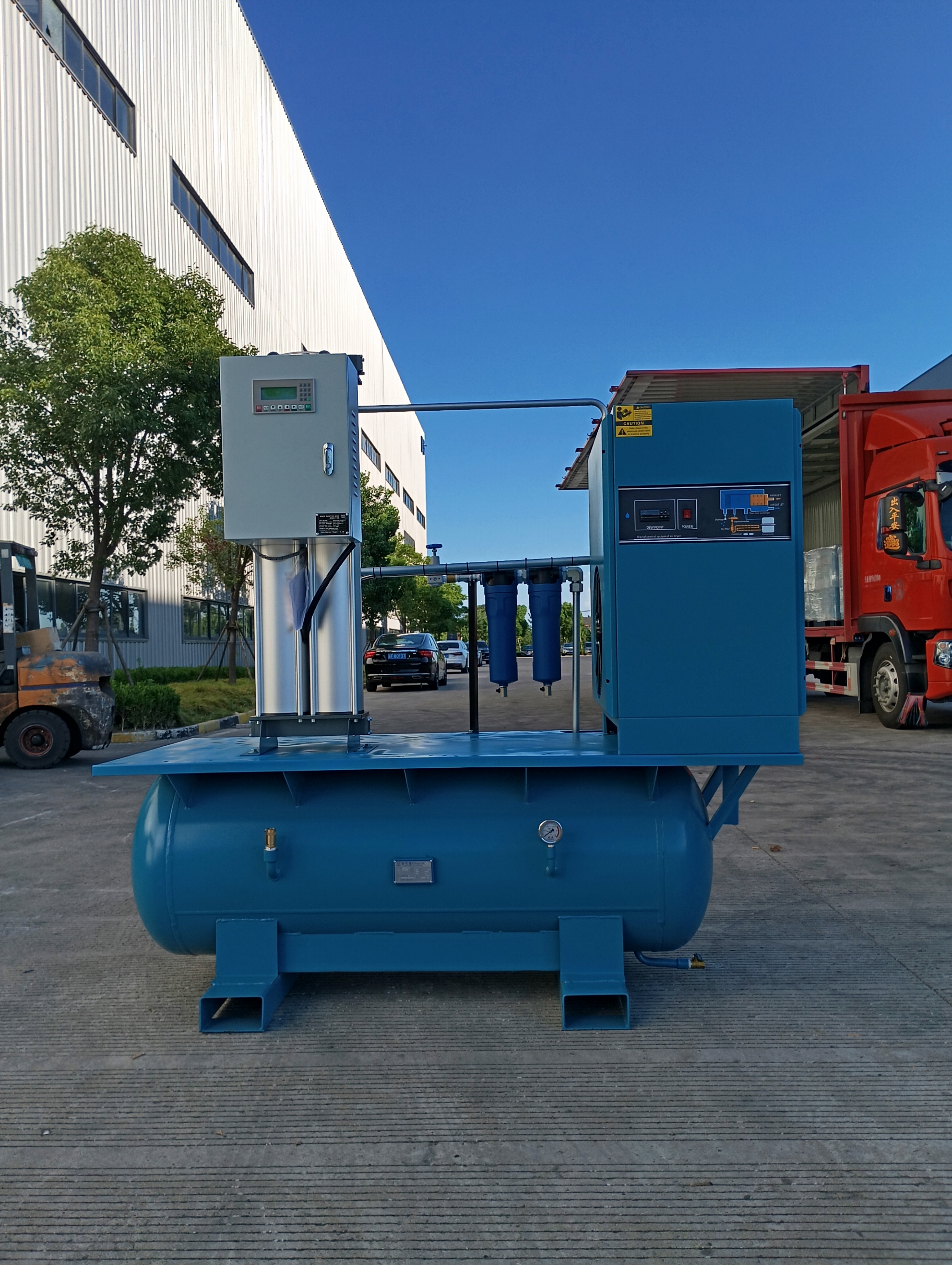

1. Integrated Design: Many products feature an integrated design that combines the air compressor unit, air storage tank, refrigeration dryer, filter, and automatic drain. This streamlined structure minimizes the equipment's footprint, simplifies installation and operation, and reduces the likelihood of issues such as air and oil leaks that can arise from the connection of multiple independent components.
2. Internal Pipeline: Some air compressor products have optimized the layout of their internal pipelines, minimizing energy loss caused by redundant pathways during the airflow process. This enhancement results in smoother airflow, reduced pressure loss, and an improved aesthetic appearance of the product.
1. Integrated Design: Many products feature an integrated design that combines the air compressor unit, air storage tank, refrigeration dryer, filter, and automatic drain. This streamlined structure minimizes the equipment's footprint, simplifies installation and operation, and reduces the likelihood of issues such as air and oil leaks that can arise from the connection of multiple independent components.
2. Internal Pipeline: Some air compressor products have optimized the layout of their internal pipelines, minimizing energy loss caused by redundant pathways during the airflow process. This enhancement results in smoother airflow, reduced pressure loss, and an improved aesthetic appearance of the product.
Sheet Metal Fabrication: Ideal for 2–20mm steel sheets and 5–10mm aluminum plates used in manufacturing enclosures, brackets, and panels for appliances, electronics, and industrial equipment.
Electronics Manufacturing: Enables micro-cutting of circuit boards, precision components, and connectors, where clean air and precise pressure control are essential to avoid damaging sensitive electronics.
Medical Device Production: Ensures clean, oil-free air for manufacturing surgical instruments, medical implants, and diagnostic equipment, complying with strict hygiene standards and regulatory requirements.
Signage & Artwork: Supports detailed laser engraving on stainless steel, acrylic, and other materials used in custom signage, decorative art, and promotional products, delivering crisp, high-quality results.
Sheet Metal Fabrication: Ideal for 2–20mm steel sheets and 5–10mm aluminum plates used in manufacturing enclosures, brackets, and panels for appliances, electronics, and industrial equipment.
Electronics Manufacturing: Enables micro-cutting of circuit boards, precision components, and connectors, where clean air and precise pressure control are essential to avoid damaging sensitive electronics.
Medical Device Production: Ensures clean, oil-free air for manufacturing surgical instruments, medical implants, and diagnostic equipment, complying with strict hygiene standards and regulatory requirements.
Signage & Artwork: Supports detailed laser engraving on stainless steel, acrylic, and other materials used in custom signage, decorative art, and promotional products, delivering crisp, high-quality results.
Model | Power (KW) | Pressure(Bar) | Output m³/min | Dia. | Noise(dB) | Outline(MM) | Wt (KG) | ||
Compressors for Laser Cutting - Variable Frequency | |||||||||
LY-10JPM | 7.5 | 16 | 0.6 | G1/2 | 60±2 | 800*720*950 | 220 | ||
LY-15JPM | 11 | 16 | 0.9 | G3/4 | 62±2 | 950*800*1070 | 380 | ||
LY-20JPM | 15 | 16 | 1.5 | G3/4 | 62±2 | 950*800*1070 | 410 | ||
LY-30JPM | 22 | 16 | 2.2 | G11/4 | 65±2 | 1200*800*1240 | 650 | ||
LY-40JPM | 30 | 16 | 3 | G11/4 | 66±2 | 1200*800*1240 | 720 | ||
LY-50JPM | 37 | 16 | 3.7 | G11/2 | 68±2 | 1300*860*1135 | 840 | ||
4-in-1 Compressors for Laser Cutting - Fixed Speed | |||||||||
LY-10JTA | 7.5 | 16 | 0.6 | G1/2 | 65±2 | 1400*750*1600 | 520 | ||
18 | 0.59 | ||||||||
LY-15JTA | 11 | 16 | 0.9 | G3/4 | 65±2 | 1700*880*1850 | 840 | ||
18 | 0.89 | 1550*880*1850 | |||||||
LY-20JTA | 15 | 16 | 1.5 | G3/4 | 65±2 | 1700*880*1850 | 880 | ||
18 | 1.48 | 1550*880*1850 | |||||||
LY-30JTA | 22 | 16 | 2.2 | G11/4 | 66±2 | 2250*980*2050 | 1300 | ||
18 | 2.17 | 2100*980*2050 | |||||||
LY-40JTA | 30 | 16 | 3 | G11/4 | 66±2 | 2250*980*2050 | 1300 | ||
4-in-1 Compressors for Laser Cutting - Variable Frequency | |||||||||
LY-10JTPM | 7.5 | 16 | 0.6 | G1/2 | 65±2 | 1400*750*1600 | 520 | ||
18 | 0.59 | ||||||||
LY-15JTPM | 11 | 16 | 0.9 | G3/4 | 65±2 | 1700*880*1850 | 840 | ||
18 | 0.89 | 1550*880*1850 | |||||||

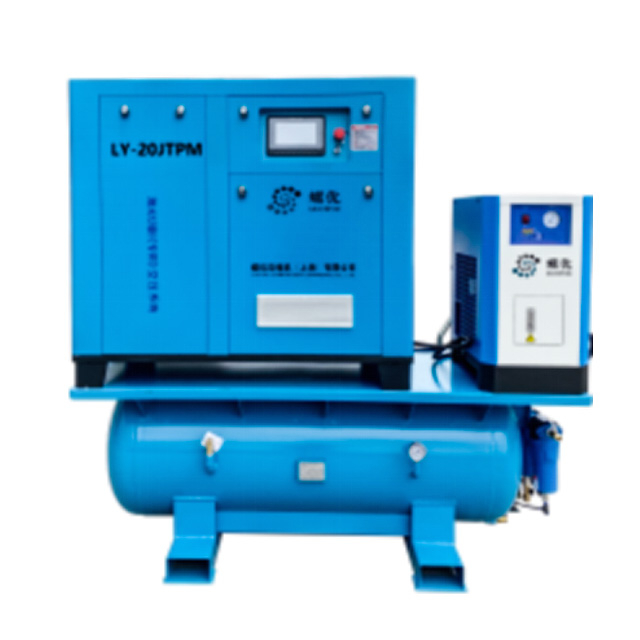

LY-20JTPM | 15 | 16 | 1.5 | G3/4 | 65±2 | 1700*880*1850 | 880 | ||
18 | 1.48 | 1550*880*1850 | |||||||
LY-30JTPM | 22 | 16 | 2.2 | G11/4 | 66±2 | 2250*980*2050 | 1300 | ||
18 | 2.17 | 2100*980*2050 | |||||||
LY-40JTMP | 30 | 16 | 3 | G11/4 | 66±2 | 2250*980*2050 | 1300 |
Model | Power (KW) | Pressure(Bar) | Output m³/min | Dia. | Noise(dB) | Outline(MM) | Wt (KG) | ||
Compressors for Laser Cutting - Variable Frequency | |||||||||
LY-10JPM | 7.5 | 16 | 0.6 | G1/2 | 60±2 | 800*720*950 | 220 | ||
LY-15JPM | 11 | 16 | 0.9 | G3/4 | 62±2 | 950*800*1070 | 380 | ||
LY-20JPM | 15 | 16 | 1.5 | G3/4 | 62±2 | 950*800*1070 | 410 | ||
LY-30JPM | 22 | 16 | 2.2 | G11/4 | 65±2 | 1200*800*1240 | 650 | ||
LY-40JPM | 30 | 16 | 3 | G11/4 | 66±2 | 1200*800*1240 | 720 | ||
LY-50JPM | 37 | 16 | 3.7 | G11/2 | 68±2 | 1300*860*1135 | 840 | ||
4-in-1 Compressors for Laser Cutting - Fixed Speed | |||||||||
LY-10JTA | 7.5 | 16 | 0.6 | G1/2 | 65±2 | 1400*750*1600 | 520 | ||
18 | 0.59 | ||||||||
LY-15JTA | 11 | 16 | 0.9 | G3/4 | 65±2 | 1700*880*1850 | 840 | ||
18 | 0.89 | 1550*880*1850 | |||||||
LY-20JTA | 15 | 16 | 1.5 | G3/4 | 65±2 | 1700*880*1850 | 880 | ||
18 | 1.48 | 1550*880*1850 | |||||||
LY-30JTA | 22 | 16 | 2.2 | G11/4 | 66±2 | 2250*980*2050 | 1300 | ||
18 | 2.17 | 2100*980*2050 | |||||||
LY-40JTA | 30 | 16 | 3 | G11/4 | 66±2 | 2250*980*2050 | 1300 | ||
4-in-1 Compressors for Laser Cutting - Variable Frequency | |||||||||
LY-10JTPM | 7.5 | 16 | 0.6 | G1/2 | 65±2 | 1400*750*1600 | 520 | ||
18 | 0.59 | ||||||||
LY-15JTPM | 11 | 16 | 0.9 | G3/4 | 65±2 | 1700*880*1850 | 840 | ||
18 | 0.89 | 1550*880*1850 | |||||||
LY-20JTPM | 15 | 16 | 1.5 | G3/4 | 65±2 | 1700*880*1850 | 880 | ||
18 | 1.48 | 1550*880*1850 | |||||||
LY-30JTPM | 22 | 16 | 2.2 | G11/4 | 66±2 | 2250*980*2050 | 1300 | ||
18 | 2.17 | 2100*980*2050 | |||||||
LY-40JTMP | 30 | 16 | 3 | G11/4 | 66±2 | 2250*980*2050 | 1300 |
