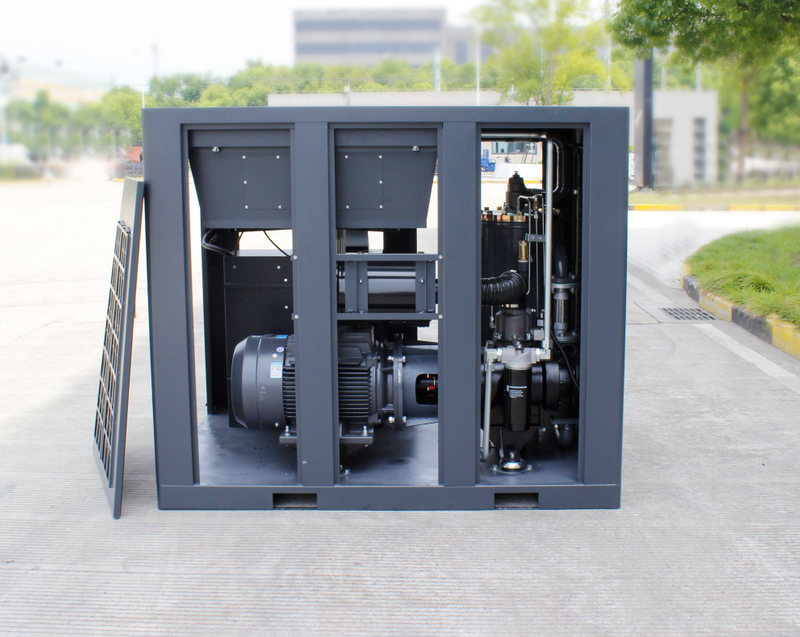

Our 75kW Permanent Magnet Variable Frequency (PM VSD) Screw Air Compressor sets a new standard in energy efficiency and industrial performance for large-scale laser cutting operations. Leveraging IE5-rated PM motors and high-efficiency rotors with optimized profiles, it achieves 30% energy savings compared to traditional fixed-speed compressors, making it an environmentally friendly and cost-effective solution for high-volume production. The IP55-sealed design and dual-loop cooling system ensure reliable operation in high-dust, high-temperature environments, such as heavy-industry factories and manufacturing plants with challenging conditions. Its robust construction and advanced control system make it a cornerstone of continuous production lines.
Pressure: 8–13 bar (116–188 psi) adjustable for diverse applications, with a wide range to accommodate everything from thin sheet metal cutting to thick plate processing.
Flow Rate: 9.3–12.5 m³/min (328–441 CFM) to power 5–10kW laser cutters, with the capacity to support multiple laser machines in a production line simultaneously.

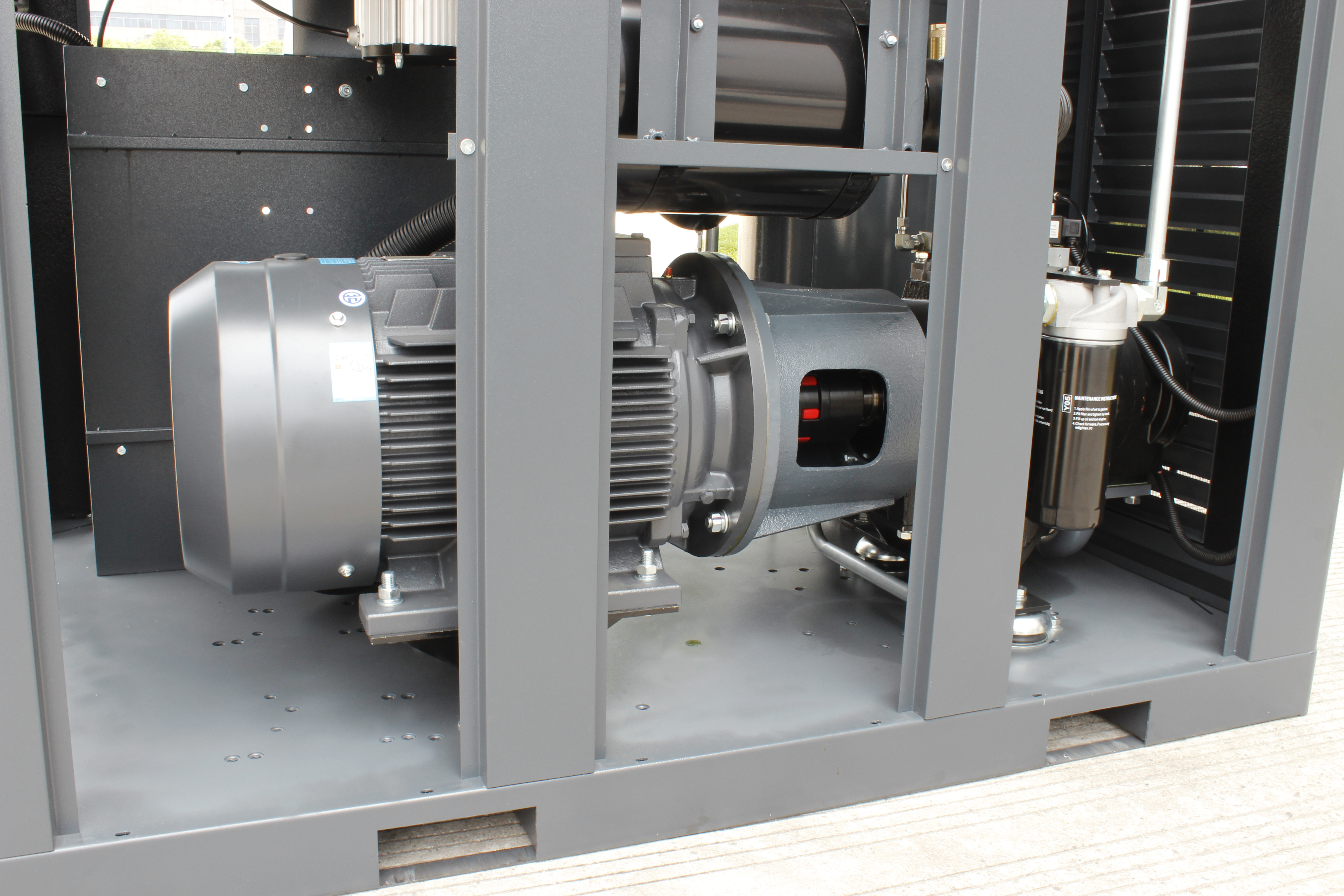

Motor: 75kW PM motor with IP55 protection and F-class insulation for 180°C heat resistance, ensuring safe and reliable operation even in extreme temperature conditions.
Noise Level: ≤68 dB for operator comfort, with sound-dampening enclosures that reduce noise pollution in the workplace and improve working conditions.
Cooling: Water-cooled system with ≤25°C inlet temperature requirement, featuring a high-efficiency heat exchanger that maintains optimal operating temperatures for extended service life.
Our 75kW Permanent Magnet Variable Frequency (PM VSD) Screw Air Compressor sets a new standard in energy efficiency and industrial performance for large-scale laser cutting operations. Leveraging IE5-rated PM motors and high-efficiency rotors with optimized profiles, it achieves 30% energy savings compared to traditional fixed-speed compressors, making it an environmentally friendly and cost-effective solution for high-volume production. The IP55-sealed design and dual-loop cooling system ensure reliable operation in high-dust, high-temperature environments, such as heavy-industry factories and manufacturing plants with challenging conditions. Its robust construction and advanced control system make it a cornerstone of continuous production lines.
Pressure: 8–13 bar (116–188 psi) adjustable for diverse applications, with a wide range to accommodate everything from thin sheet metal cutting to thick plate processing.
Flow Rate: 9.3–12.5 m³/min (328–441 CFM) to power 5–10kW laser cutters, with the capacity to support multiple laser machines in a production line simultaneously.
Motor: 75kW PM motor with IP55 protection and F-class insulation for 180°C heat resistance, ensuring safe and reliable operation even in extreme temperature conditions.
Noise Level: ≤68 dB for operator comfort, with sound-dampening enclosures that reduce noise pollution in the workplace and improve working conditions.
Cooling: Water-cooled system with ≤25°C inlet temperature requirement, featuring a high-efficiency heat exchanger that maintains optimal operating temperatures for extended service life.
