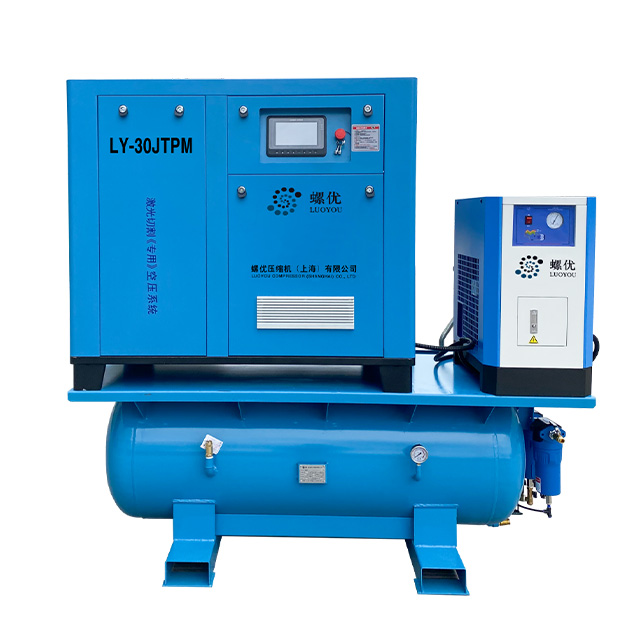

22kw Air Compressor Specially For Laser Cutting

The system typically operates on the principle of screw compression. The motor drives the screw rotors to rotate, allowing air to enter through the air inlet. As the screw rotors turn, the air is progressively compressed, resulting in an increase in pressure. Ultimately, the compressed air is discharged from the air outlet and directed into the subsequent air treatment system and the air supply pipeline of the laser cutting machine.

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button


Intelligent Pressure Control: Automatically adjusts output to match laser cutting requirements using advanced sensor technology, reducing energy waste by 25% compared to fixed-pressure compressors and lowering operational costs.

Dust Resilience: IP54 motor and specialized air intake filters with a multi-layer design protect internal components in high-dust environments, such as metal fabrication shops where metal particles are prevalent.

Longevity: High-strength cast iron cylinders and oil-cooled bearings ensure 8000+ hours of continuous operation before major maintenance is required, minimizing downtime and maximizing productivity.

Plug-and-Play Integration: Pre-installed 130–1000L air tank and dryer simplify setup for immediate use, with standardized connections that compatibility with most laser cutting machines on the market.

Remote Monitoring: Optional 4G IoT module allows real-time tracking of pressure, temperature, and maintenance alerts via a mobile app or web portal, enabling proactive maintenance and reducing the risk of unexpected breakdowns.

激光空压机讲解视频.mp4


Air compressor

Name1

air compressor

Name2



Heavy-Duty Metal Fabrication: Efficiently cuts carbon steel, stainless steel, and aluminum up to 50mm thick, making it ideal for manufacturing structural components, industrial machinery parts, and heavy equipment.

Automotive Parts Production: Ensures burr-free edges for engine components, chassis assemblies, and suspension parts, where precision and durability are critical for vehicle performance and safety.

Construction Industry: Supports large-scale steel structure manufacturing for bridges, buildings, and infrastructure projects, as well as architectural metalwork such as decorative facades and railings.

Aerospace: Enables precise cutting of titanium alloys and composite materials for aircraft components, including wing sections, landing gear parts, and engine casings, where material strength and weight reduction are paramount.



Model

Power (KW)

Pressure(Bar)

Output m³/min

Dia.

Noise(dB)

Outline(MM)

Wt (KG)

Compressors for Laser Cutting - Variable Frequency


LY-10JPM

7.5

16

0.6

G1/2

60±2

800*720*950

220

LY-15JPM

11

16

0.9

G3/4

62±2

950*800*1070

380

LY-20JPM

15

16

1.5

G3/4

62±2

950*800*1070

410

LY-30JPM

22

16

2.2

G11/4

65±2

1200*800*1240

650

LY-40JPM

30

16

3

G11/4

66±2

1200*800*1240

720

LY-50JPM

37

16

3.7

G11/2

68±2

1300*860*1135

840

4-in-1 Compressors for Laser Cutting - Fixed Speed


LY-10JTA

7.5

16

0.6

G1/2

65±2

1400*750*1600

520

18

0.59

LY-15JTA

11

16

0.9

G3/4

65±2

1700*880*1850

840

18

0.89

1550*880*1850

LY-20JTA

15

16

1.5

G3/4

65±2

1700*880*1850

880

18

1.48

1550*880*1850

LY-30JTA

22

16

2.2

G11/4

66±2

2250*980*2050

1300

18

2.17

2100*980*2050

LY-40JTA

30

16

3

G11/4

66±2

2250*980*2050

1300

4-in-1 Compressors for Laser Cutting - Variable Frequency


LY-10JTPM

7.5

16

0.6

G1/2

65±2

1400*750*1600

520

18

0.59

LY-15JTPM

11

16

0.9

G3/4

65±2

1700*880*1850

840

18

0.89

1550*880*1850

LY-20JTPM

15

16

1.5

G3/4

65±2

1700*880*1850

880

18

1.48

1550*880*1850

LY-30JTPM

22

16

2.2

G11/4

66±2

2250*980*2050

1300

18

2.17

2100*980*2050

LY-40JTMP

30

16

3

G11/4

66±2

2250*980*2050

1300
