Low Pressure PM Rotary Screw Air Compressor

Low Pressure PM Rotary Screw Air Compressor

A Low Pressure PM Rotary Screw Air Compressor is engineered to deliver compressed air at pressures between 2–5.5 bar (29–80 psi), catering to applications requiring high airflow at lower pressures. Its defining feature is the integration of permanent magnet (PM) motors with variable speed drives (VSD), setting new benchmarks in energy efficiency.

Quantity:
Availability:





Inquire Add to Basket

Direct coupling PM motors eliminate transmission losses from belts or gears, achieving IE4/IE5 efficiency (up to 97%), cutting energy use by 30–40% compared to fixed-speed models. The VSD adjusts motor speed to match real-time demand, preventing energy waste during partial loads. Optimized rotor profiles and low rotational speeds (≤1,500 RPM) maximize airflow while minimizing power draw, with asymmetric tooth designs enhancing compression efficiency at low pressures.

*Verify Code

LY-CV series	Working Pressure		Capacity		Power
LY-CV series	Bar	Psig	(m3/min)	Cfm	KW	HP

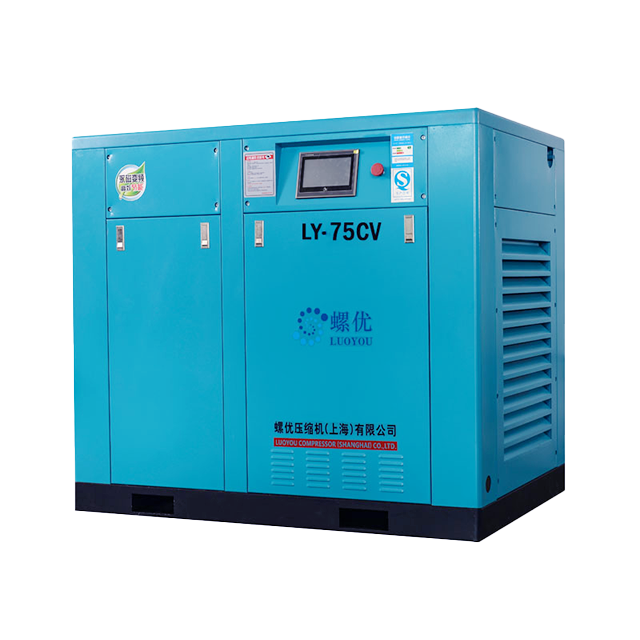

LY-75CV	4.0-5.0	58-73	4.3-14.5	152-512	55	75
LY-100CV	4.0-5.0	58-73	5.8-19.5	205-689	75	100
LY-120CV	4.0-5.0	58-73	7.2-24.2	254-855	90	120
LY-150CV	4.0-5.0	58-73	8.2-27.5	290-971	110	150
LY-175CV	4.0-5.0	58-73	10.2-34.5	360-1218	132	175
LY-215CV	4.0-5.0	58-73	12.6-42.2	445-1490	160	215
LY-270CV	4.0-5.0	58-73	15.7-52.5	554-1854	200	270
LY-300CV	4.0-5.0	58-73	17.3-58	611-2048	220	300
LY-350CV	4.0-5.0	58-73	18.8-63.1	664-2228	250	350
LY-375CV	4.0-5.0	58-73	22.3-74.8	788-2642	280	375
LY-30CV	2.1–3	30–44	1.8–6.5	64–230	22	30
LY-50CV	2.1–3	30–44	3.4–11.6	120–410	37	50
LY-75CV1	2.1–3	30–44	5.1–17.2	180–607	55	75
LY-175CV2	2.1–3	30–44	4.6–15.8	162–558	55	75
LY-100CV1	2.1–3	30–44	7.2–24.2	253–855	75	100
LY-100CV2	2.1–3	30–44	6–20,5	212–724	75	100
LY-120CV1	2.1–3	30–44	8.9–30	314–1059	90	120
LY-120CV2	2.1–3	30–44	7.2.9–24.2	254–855	90	120
LY-150CV1	2.1–3	30–44	10.9–36.5	385–1289	110	150
LY-150CV2	2.1–3	30–44	9.6–32. 4	339–1144	110	150
LY-175CV1	2.1–3	30–44	14.2–47. 6	501–1681	132	175
LY-175CV2	2.1–3	30–44	11.3–37. 9	339–1338	132	175
LY-215CV1	2.1–3	30–44	12.8–42. 8	452–1511	160	215
LY-215CV2	2.1–3	30–44	15.7–52. 7	554–1861	160	215
LY-250CV	2.1–3	30–44	19.1–63. 8	645–2253	185	250
LY-270CV	2.1–3	30–44	21–70. 2	742–2479	200	270
LY-350CV	2.1–3	30–44	27.5–80	972–2830	250	350

LY-CV series	Working Pressure		Capacity		Power
LY-CV series	Bar	Psig	(m3/min)	Cfm	KW	HP
LY-75CV	4.0-5.0	58-73	4.3-14.5	152-512	55	75
LY-100CV	4.0-5.0	58-73	5.8-19.5	205-689	75	100
LY-120CV	4.0-5.0	58-73	7.2-24.2	254-855	90	120
LY-150CV	4.0-5.0	58-73	8.2-27.5	290-971	110	150
LY-175CV	4.0-5.0	58-73	10.2-34.5	360-1218	132	175
LY-215CV	4.0-5.0	58-73	12.6-42.2	445-1490	160	215
LY-270CV	4.0-5.0	58-73	15.7-52.5	554-1854	200	270
LY-300CV	4.0-5.0	58-73	17.3-58	611-2048	220	300
LY-350CV	4.0-5.0	58-73	18.8-63.1	664-2228	250	350
LY-375CV	4.0-5.0	58-73	22.3-74.8	788-2642	280	375
LY-30CV	2.1–3	30–44	1.8–6.5	64–230	22	30
LY-50CV	2.1–3	30–44	3.4–11.6	120–410	37	50
LY-75CV1	2.1–3	30–44	5.1–17.2	180–607	55	75
LY-175CV2	2.1–3	30–44	4.6–15.8	162–558	55	75
LY-100CV1	2.1–3	30–44	7.2–24.2	253–855	75	100
LY-100CV2	2.1–3	30–44	6–20,5	212–724	75	100
LY-120CV1	2.1–3	30–44	8.9–30	314–1059	90	120
LY-120CV2	2.1–3	30–44	7.2.9–24.2	254–855	90	120
LY-150CV1	2.1–3	30–44	10.9–36.5	385–1289	110	150
LY-150CV2	2.1–3	30–44	9.6–32. 4	339–1144	110	150
LY-175CV1	2.1–3	30–44	14.2–47. 6	501–1681	132	175
LY-175CV2	2.1–3	30–44	11.3–37. 9	339–1338	132	175
LY-215CV1	2.1–3	30–44	12.8–42. 8	452–1511	160	215
LY-215CV2	2.1–3	30–44	15.7–52. 7	554–1861	160	215
LY-250CV	2.1–3	30–44	19.1–63. 8	645–2253	185	250
LY-270CV	2.1–3	30–44	21–70. 2	742–2479	200	270
LY-350CV	2.1–3	30–44	27.5–80	972–2830	250	350
