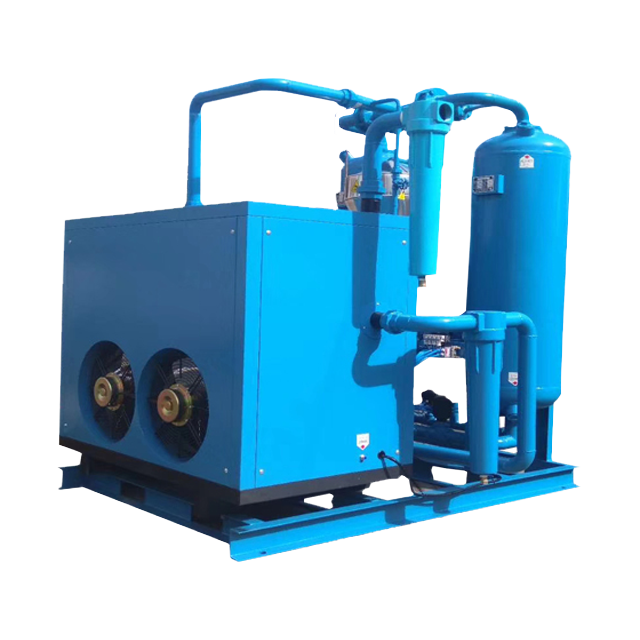

Compressed Air Combination Dryer

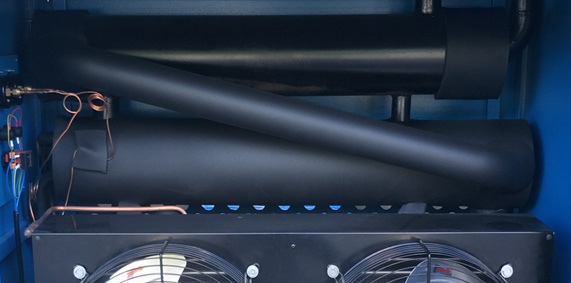

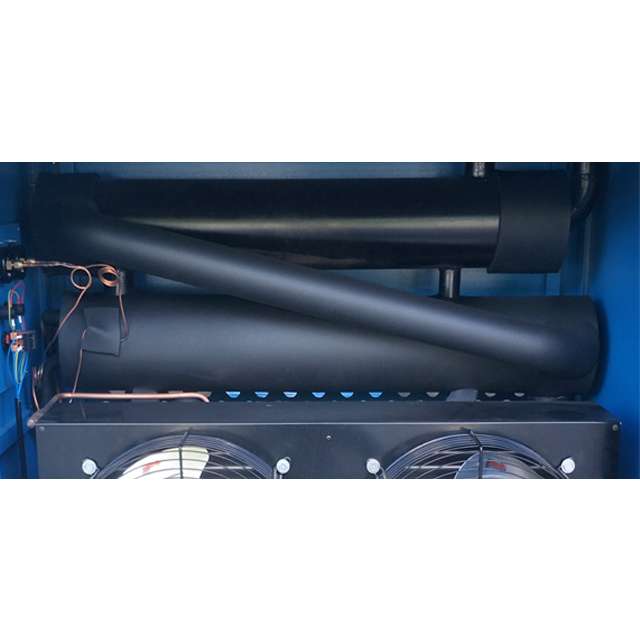

The high-temperature and high-humidity compressed air from the compressor is first exchanged with the dried low-temperature compressed air in the heat exchanger to reduce the temperature, and then enters the evaporator to be further cooled, in which most of the gaseous water molecules condense into liquid water and are eliminated. After that, the compressed air with very low moisture content enters the adsorption cylinder and is further dried and dehumidified, and the finished gas with a lower dew point is obtained, and finally the low-temperature dry compressed air enters the heat exchanger to cool the high-temperature and high-humidity inlet air, and the temperature itself also rises, preventing condensation outside the conveyed pipeline, and a small part of the heated dry compressed air is used for adsorption and regeneration, improving regeneration efficiency and reducing energy consumption.

The system is perfect and runs smoothly:Excellent refrigeration compressor and components are selected, the system is designed perfectly, and excellent pneumatic butterfly valves are selected inside the machine to ensure the stable operation of the equipment.

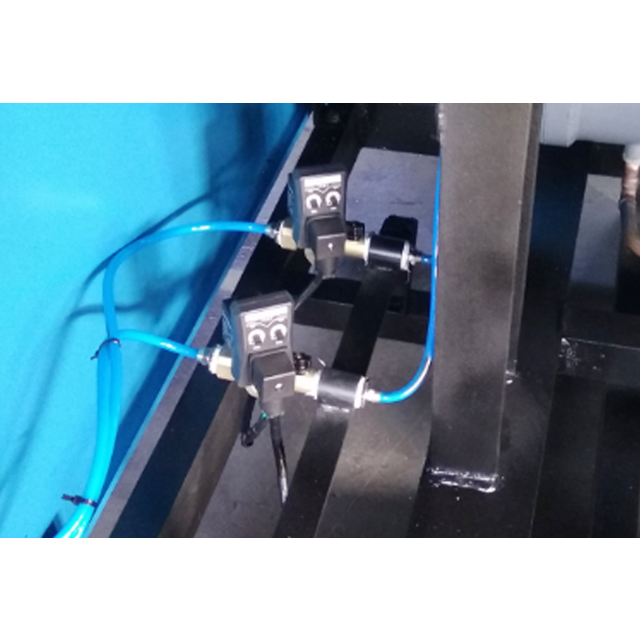

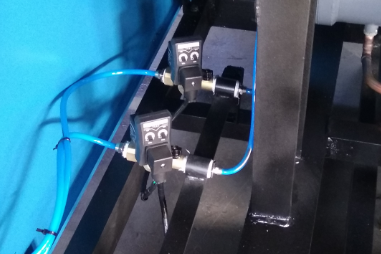

 Electronic drainer:It adopts imported technology brands and selects an enlarged electronic automatic drainer to eliminate hidden dangers and faults caused by blockages.

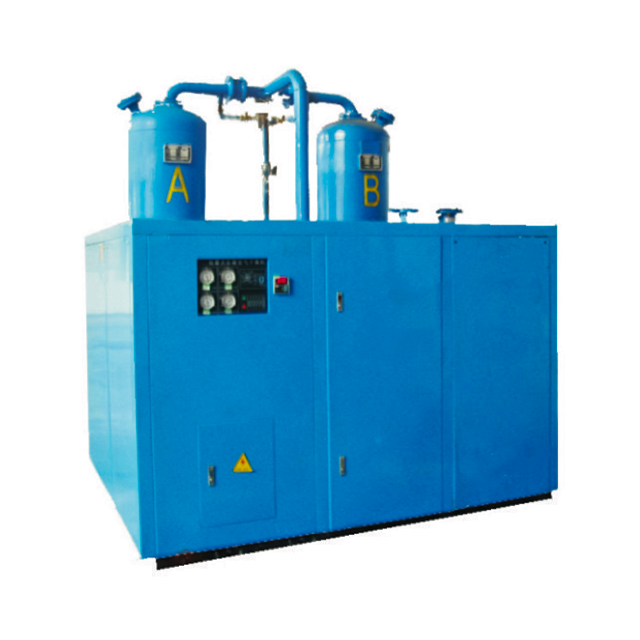

Adsorption system:The design and manufacture of the tower body conform to the specifications of the pressure vessel, the selection of excellent desiccant, high compressive strength, non-hydrolysis, the adoption of special design, the continuous supply of air during the switching of the adsorption tower, the slow and stable filling program and switching design, the independent filling port and discharge port, easy to replace the adsorbent.

Flexible operation and clear layout:The panel is equipped with a clear process flow chart, which can directly display the operating status of the equipment, and the output is flexible and reliable.

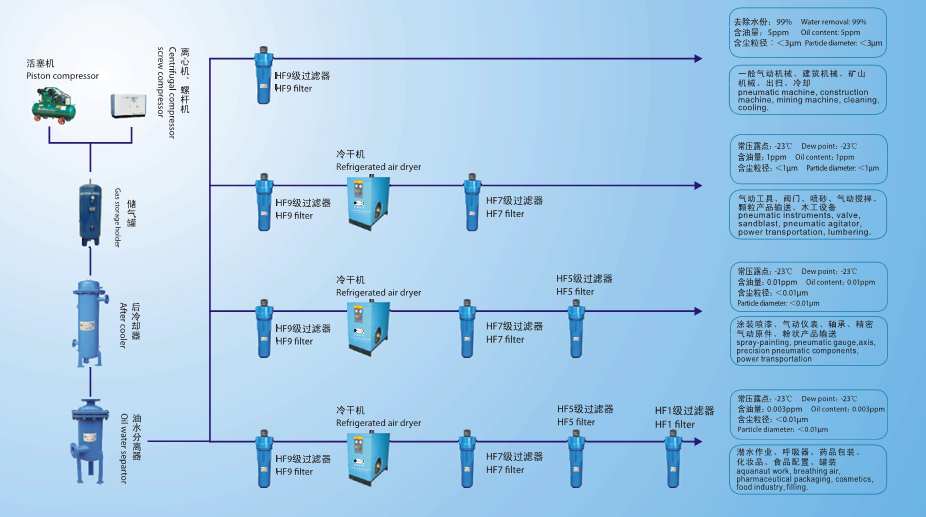

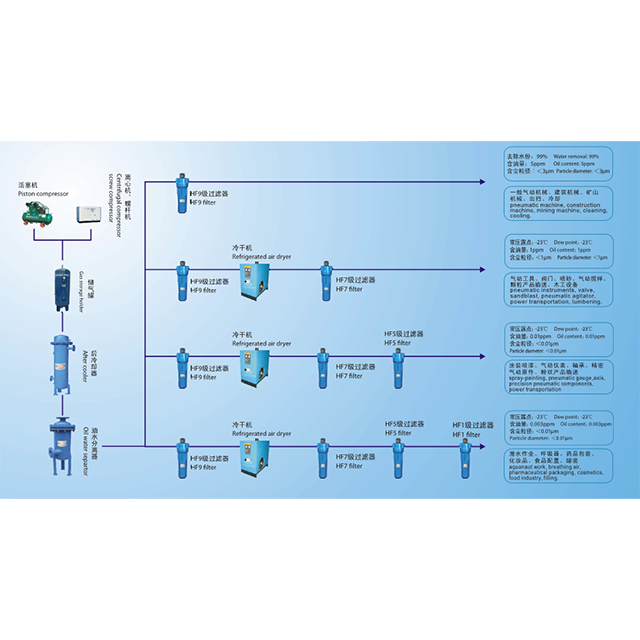

Compressed Air System Configuration Drawing

To Provide You With High Quality Compressedair

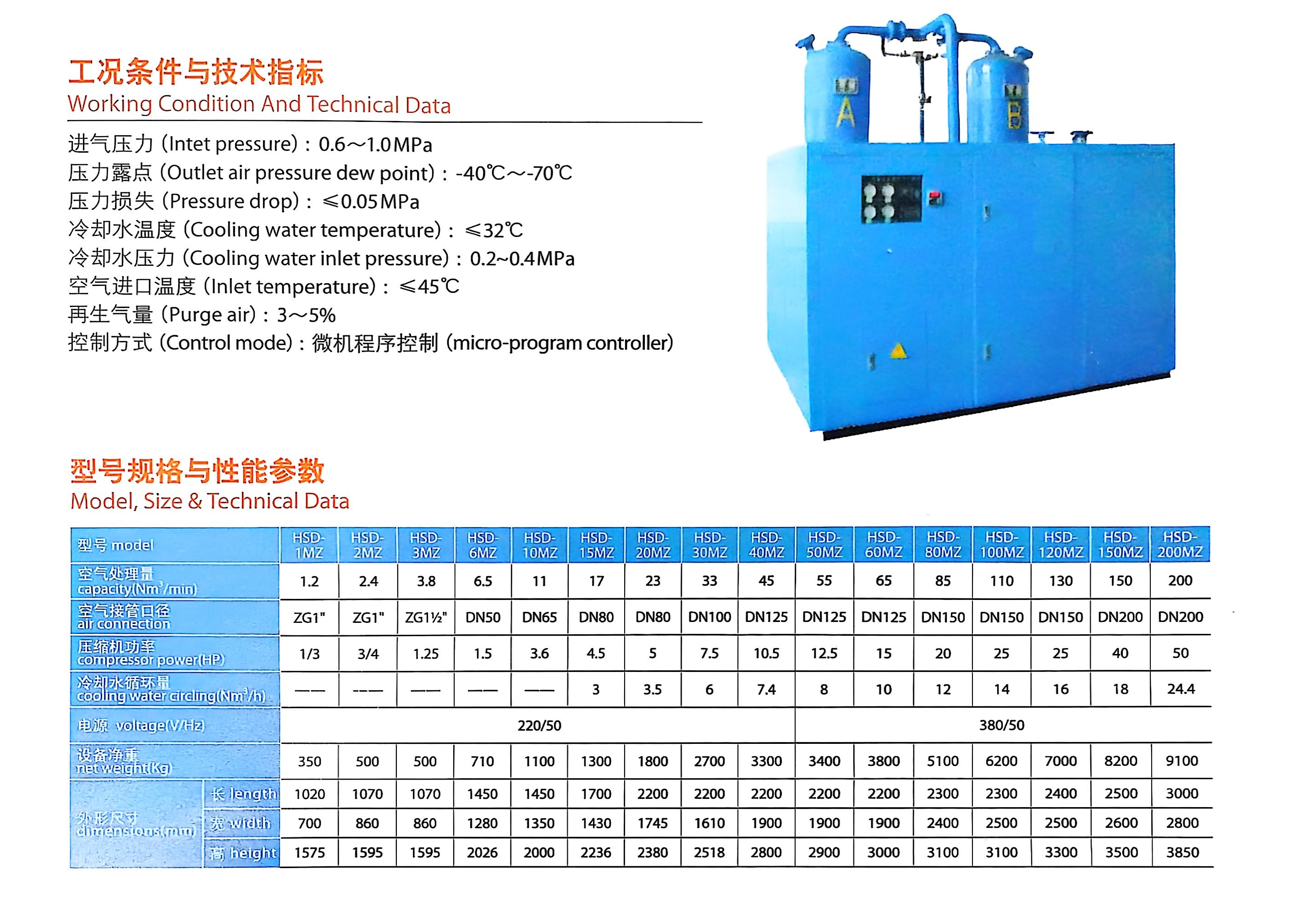

The Luoyou series dryer operates continuously under the conditions of rated working conditions (i.e., inlet temperature 38C, inlet pressure 7Kgf/cm2, relative humidity 100% and maximum load 100%), and the outlet dew point will be guaranteed to reach the original design value. To choose a refrigerated dryer correctly, it is necessary to take into account the actual flow of compressed air, pressure, temperature, ambient temperature, and the required pressure dew point temperature. When the "pressure dew point" of compressed air is required to be below zero, a suction dryer is a better device for compressed air treatment.
