Types, Working Principles, and Applications of Nitrogen Generator

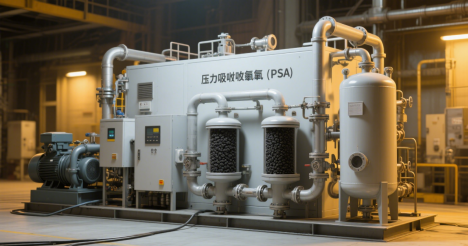

1. Pressure Swing Adsorption (PSA) Nitrogen Generators

Working Principle:

PSA nitrogen generators utilize the adsorption properties of materials like Carbon Molecular Sieve (CMS) or Zeolite. The process involves:

1.  Air Compression and Purification: Ambient air is compressed and purified to remove contaminants such as oil, moisture, and particulates.

2.  Adsorption: The clean, compressed air is introduced into adsorption vessels filled with CMS or Zeolite. These materials selectively adsorb oxygen, carbon dioxide, and water vapor under high pressure, allowing nitrogen to pass through.

3.  Desorption and Regeneration: Once the adsorbent material is saturated, the pressure is reduced to release the adsorbed gases. The system then switches to another vessel to continue nitrogen production, ensuring a continuous supply.

Applications:

•  Industrial: Used in chemicals, food packaging, pharmaceuticals, and electronics.

•  Oil and Gas: For inerting and purging operations to ensure safety and mitigate explosion risks.

•  Metal Production: Used for blanketing, purging, and protecting molten metals.

•  Laboratories: Provides a controlled atmosphere for sensitive experiments.

1. Membrane Nitrogen Generators

Working Principle:

Membrane nitrogen generators rely on selective permeation through a semi-permeable membrane. The process includes:

1.  Air Compression and Purification: Ambient air is compressed and purified to remove contaminants.

2.  Membrane Module: The purified compressed air passes through hollow fiber membranes made from specialized polymers. These membranes allow smaller molecules like oxygen, carbon dioxide, and water vapor to permeate through, while nitrogen, which has larger molecules, permeates more slowly.

3.  Nitrogen Collection: The nitrogen-rich stream is collected as the product gas, typically achieving purities between 95% and 99%.

Applications:

•  Food and Beverage Packaging: Ideal for Modified Atmosphere Packaging (MAP) to extend the shelf life of food products.

•  Pharmaceuticals: Provides an inert environment for packaging to prevent oxidation and degradation of sensitive compounds.

•  Electronics: Used in manufacturing to create a controlled environment that prevents contamination and oxidation.

•  Automotive and Aerospace: Used for inflating tires and various processes in aerodynamics testing and fueling.

1. Cryogenic Nitrogen Generators

Working Principle:

Cryogenic nitrogen generators extract nitrogen from ambient air by cooling it to extremely low temperatures, causing the air to liquefy. Through a distillation process, nitrogen is separated from oxygen and other gases based on their different boiling points. The nitrogen is then vaporized back to its gaseous state and can be stored or directly utilized.

Applications:

•  Medical and Healthcare: Used in cryosurgery, preservation of biological samples, and cryogenic freezing.

•  Aerospace: Used for purging systems and inflating aircraft tires to reduce fire risks.

•  Industrial: Essential in large-scale nitrogen production for processes such as metal treatment, welding, and inerting.

•  Laboratories: Commonly used for cooling and other cryogenic applications.

Summary

Nitrogen generators are crucial in various industries, providing a reliable on-site supply of high-purity nitrogen gas. PSA generators are suitable for applications requiring the highest levels of purity, while membrane generators offer a simpler and more cost-effective solution for lower purity needs. Cryogenic generators are ideal for large-scale production and specific applications requiring extremely low temperatures.
